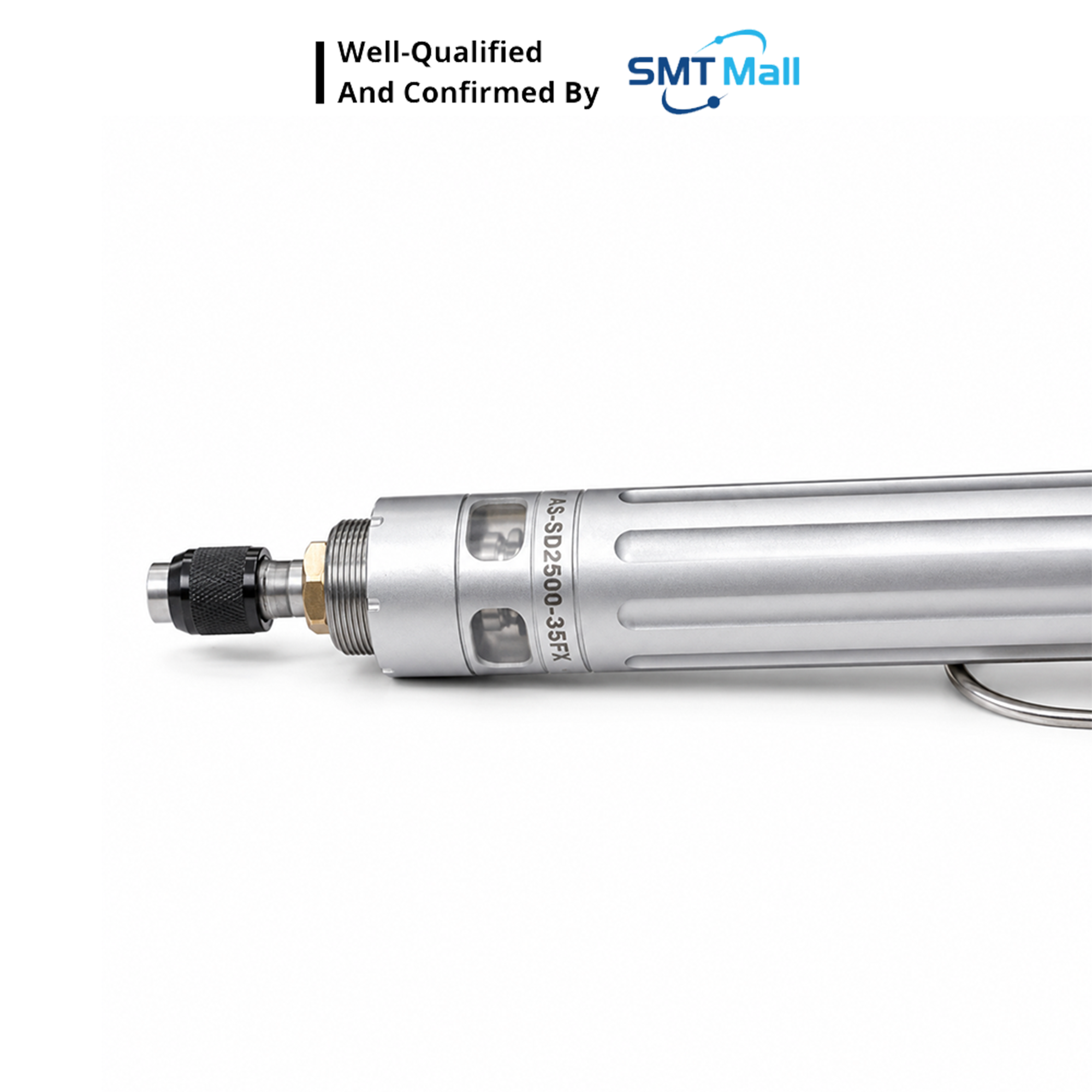

ASG-SD2500-35FX Transducerized Electric Screwdriver
The ASG-SD2500-35FX Transducerized Electric Screwdriver provides highly accurate torque and angle control with a built-in transducer. Its fixture-mount brushless body is designed for robotic and automated assembly systems. Part of our Smart Screwdrivers range in Assembling Solutions.
Key Features
| Key Feature | Description |
| Transducerized Torque & Angle Control | Provides highly accurate fastening control with real-time torque and angle monitoring. |

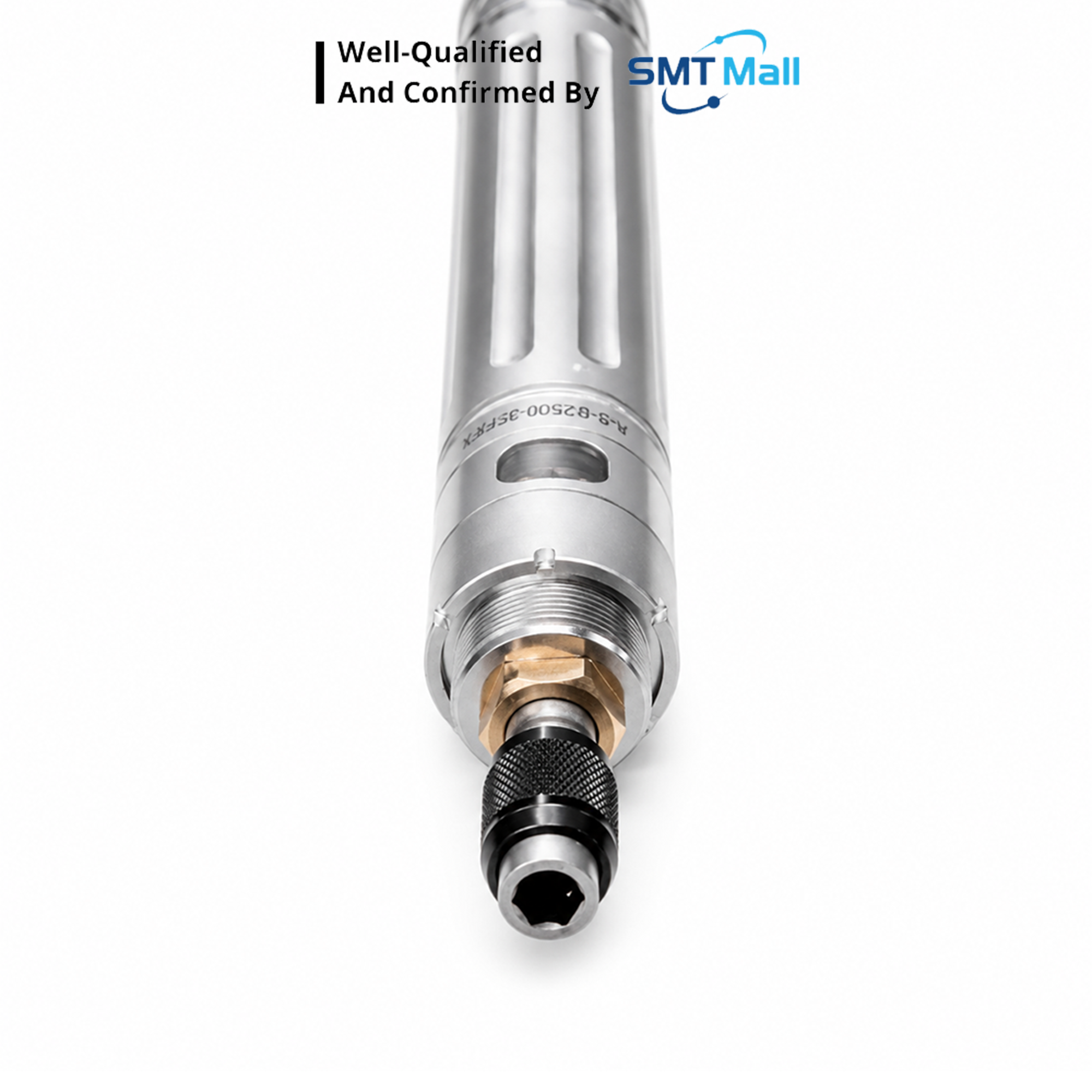

| Fixture Mount Design | Threaded-end fixture mount body designed for robotic and automated assembly integration. |
| Brushless Motor Technology | Compact lightweight brushless motor ensures long life, low maintenance, and quiet operation. |
| Advanced X-PAQ Controller Compatibility | Works with CT2500 X-PAQ Controller for programmable fastening and process management. |
| Programmable Fastening Tasks | Supports up to 32 programmable tasks with multiple fastening parameters. |
| Data Collection & Traceability | Stores fastening data and supports rundown graphing/export for quality control. |
| Industrial Communication | Programmable I/O and network interface support for automation systems. |
| LED Status Indicators | Integrated high-intensity LED indicators provide operator process feedback. |
The ASG-SD2500-35FX is a premium transducerized electric screwdriver designed for precision fastening applications requiring highly accurate torque and angle control. Part of the ASG X-PAQ SD2500 Series, the 35FX model is engineered specifically for fixture-mounted and automated assembly systems.
Featuring a compact lightweight aluminum body, integrated torque transducer technology, and intelligent fastening control, the SD2500-35FX delivers exceptional fastening repeatability, process traceability, and industrial reliability. The system works together with the CT2500 X-PAQ Controller to provide advanced programmable fastening sequences, real-time data monitoring, rundown graphing, and industrial process integration.
Its fixture mount threaded-end design allows seamless integration into robotic assembly cells, automated production lines, and high-volume manufacturing environments where fastening quality and process control are critical.
Technical Specifications
| Specification | Details |
| Model | ASG-SD2500-35FX |
| Series | X-PAQ SD2500 |
| Manufacturer | ASG Jergens |
| Tool Type | Fixture Mount Transducerized Electric Screwdriver |
| Operation | Fixture Mount |
| Torque Range | 3.5 – 35 lbf.in / 0.4 – 3.9 N.m |
| Maximum Speed | 800 RPM |
| Drive Type | 1/4″ Hex |
| Motor Type | Brushless |
| Body Material | Lightweight Aluminum |
| Controller Compatibility | CT2500 X-PAQ Controller |
| Fastening Tasks | 32 Programmable Tasks |
| Data Functions | Torque & Angle Data Collection |
| Communication | Programmable I/O & Network Interface |
| Application | Automated Precision Fastening |
| Condition | New |
Applications
- Automated assembly systems
- Robotic fastening applications
- Electronics and PCB manufacturing
- Automotive electronics production
- Medical device assembly
- Industrial automation production lines
- Precision fastening applications
Advantages
- Excellent fastening repeatability
- Advanced process traceability
- Supports Industry 4.0 manufacturing integration
- Ideal for automated production environments
- Compact lightweight industrial design
- High-precision torque and angle control
Reference Sources: ASG Jergens official X-PAQ SD2500 product pages and industrial fastening catalogs.
Specifications subject to change without prior notice.
