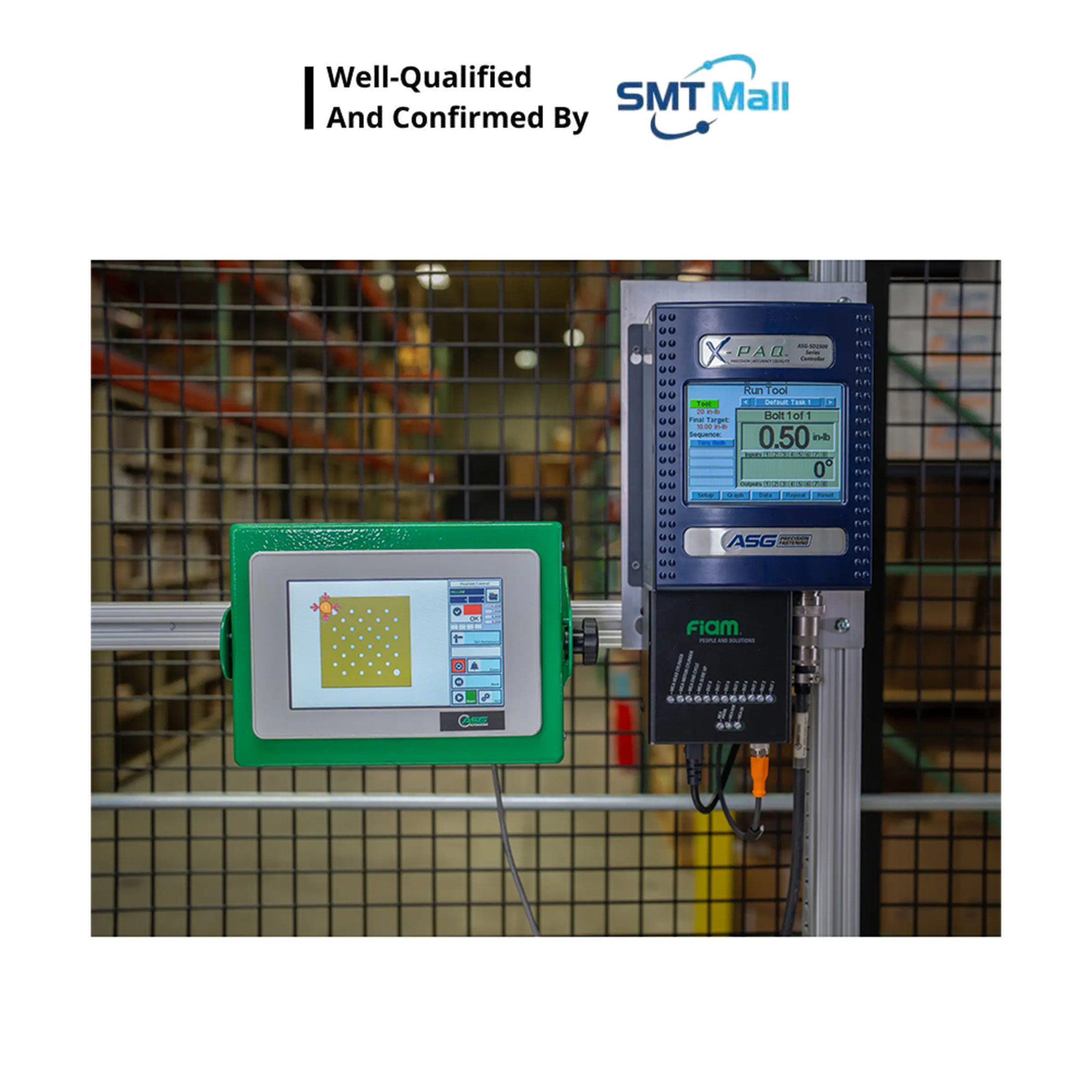

ASG X-PAQ™ SD2500 Torque Control System
The ASG X-PAQ™ SD2500 Torque Control System combines an intelligent controller with precision screwdrivers and nutrunners for accurate torque and angle control. Real-time data collection and graphing support quality control and full traceability. Part of our Smart Screwdrivers range in Assembling Solutions.
Key Features
| Key Feature | Description |
| Torque & Angle Control | Advanced torque and angle monitoring ensures accurate and repeatable fastening performance. |
| Programmable Fastening Sequences | Supports multiple fastening programs for different assembly processes. |
| Real-Time Data Collection | Captures fastening data for quality control and process traceability. |
| Graphing & Export Functions | Fastening data can be graphed and exported for analysis and reporting. |
| PLC / I/O Integration | Supports industrial automation integration with programmable I/O communication. |
| Multi Tool Compatibility | Compatible with inline screwdrivers, angle nutrunners, and fixture-mounted systems. |
The ASG X-PAQ SD2500 is a high-performance precision fastening system designed for advanced assembly applications requiring accurate torque and angle control. Developed by ASG Jergens, the X-PAQ SD2500 integrates intelligent controller technology with high-precision electric screwdrivers and nutrunners to deliver exceptional fastening reliability and process traceability.
The system is engineered for manufacturing environments where quality assurance, data collection, and repeatable fastening performance are critical. With advanced programmable controls, real-time monitoring, and data logging functions, the SD2500 helps manufacturers reduce assembly errors, improve productivity, and maintain strict process compliance.
The X-PAQ SD2500 platform supports inline, right-angle, and fixture-mounted tools, making it suitable for a wide range of industrial automation and electronics assembly applications.
Technical Specifications
| Specification | Details |
| Model | X-PAQ SD2500 |
| Manufacturer | ASG Jergens |
| System Type | Precision Fastening System |
| Control Type | Torque & Angle Control |

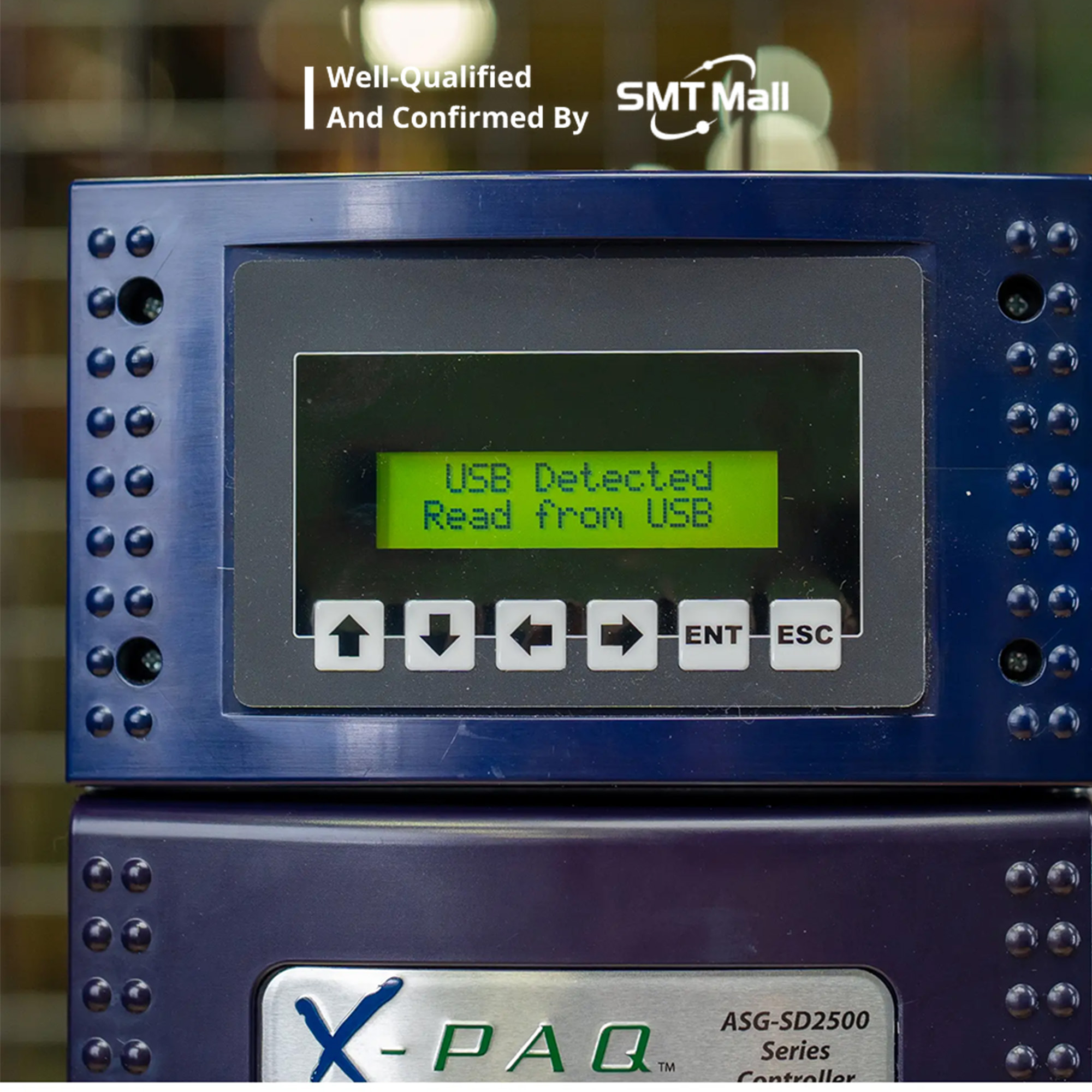

| Controller | ASG-CT2500 Torque Controller |
| Torque Range | 1 – 50 lbf.in (0.1 – 5.6 N.m) |
| Tool Types | Inline / Right Angle / Fixture Mount |
| Programming | Multi-program Fastening |
| Data Collection | Real-time Data Logging |
| Communication | PLC / I/O Integration |
Applications
- Electronics and PCB assembly
- Automotive electronics and EV production
- Medical device manufacturing
- Aerospace fastening applications
- Industrial automation assembly lines
- Telecommunications equipment manufacturing
Advantages
- Improves fastening consistency and quality
- Reduces operator assembly errors
- Enhances process traceability
- Supports Industry 4.0 manufacturing environments
- Suitable for high-volume production lines
Reference Source: ASG Jergens official product page.
Specifications subject to change without prior notice.
