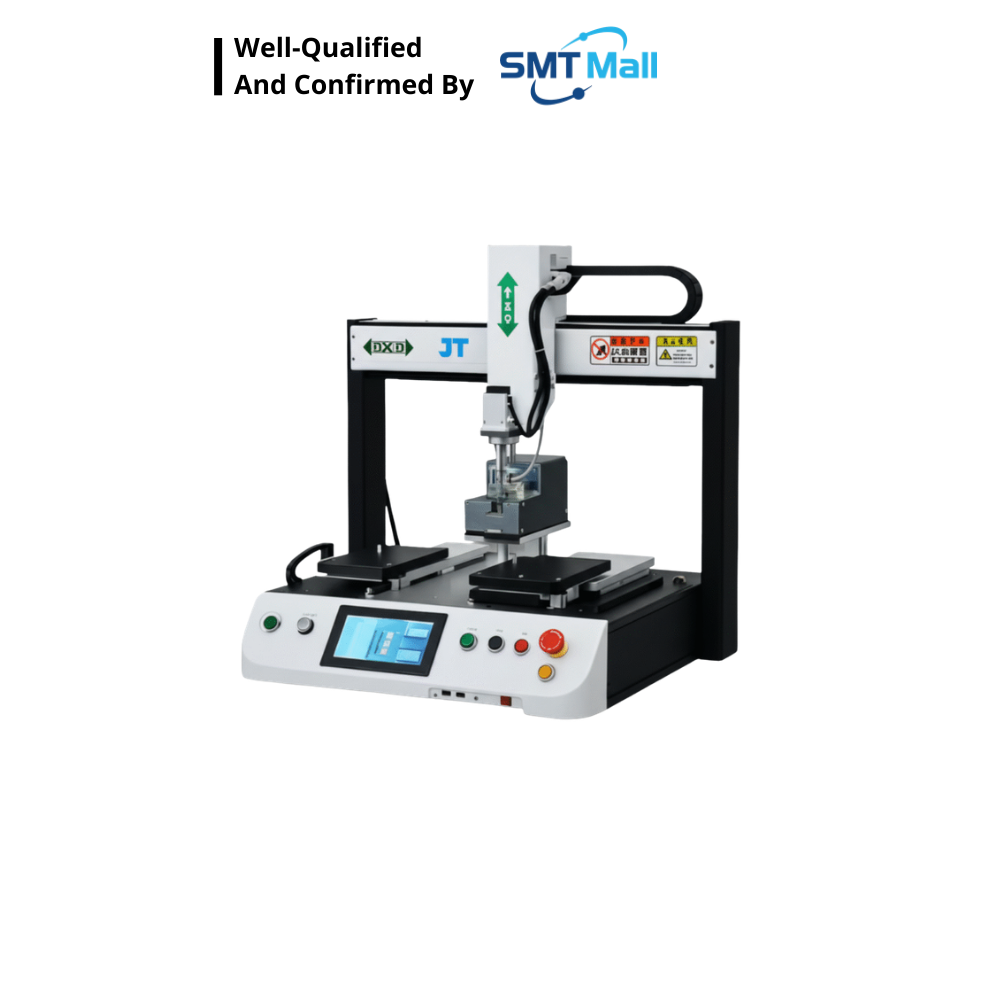

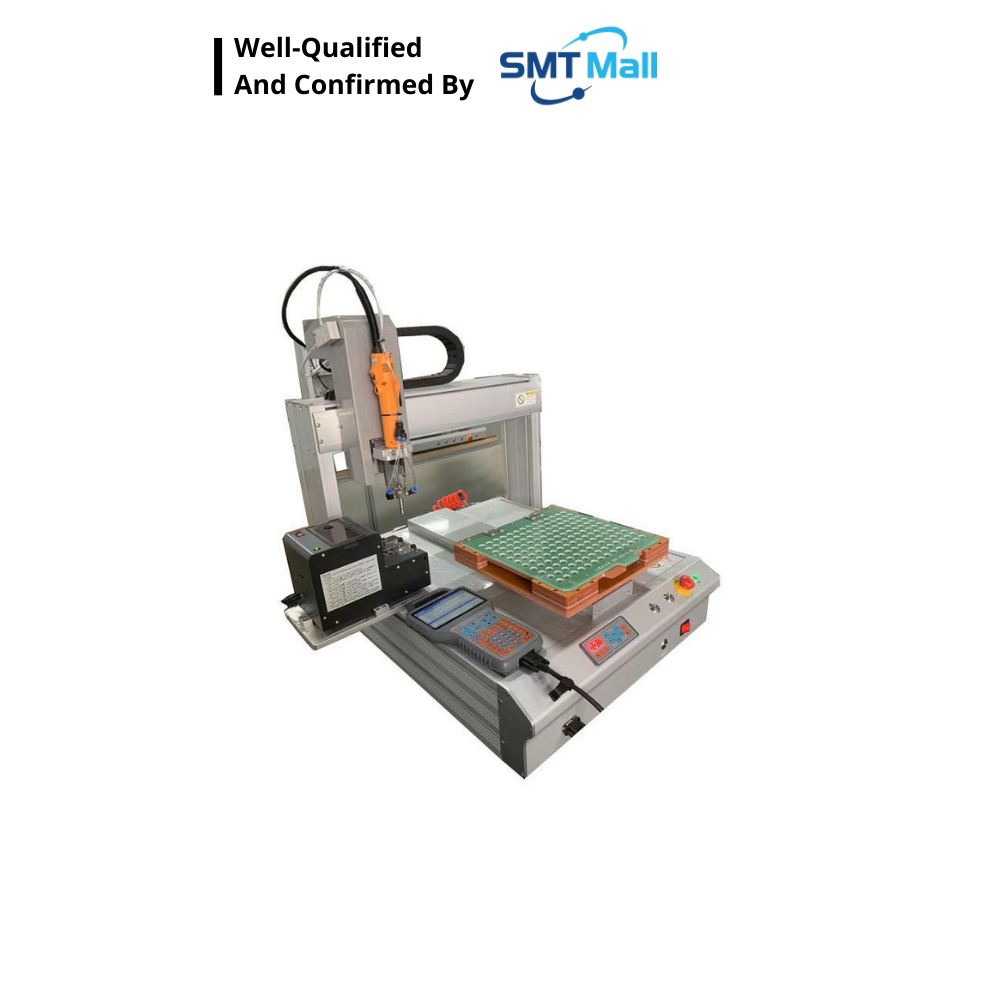

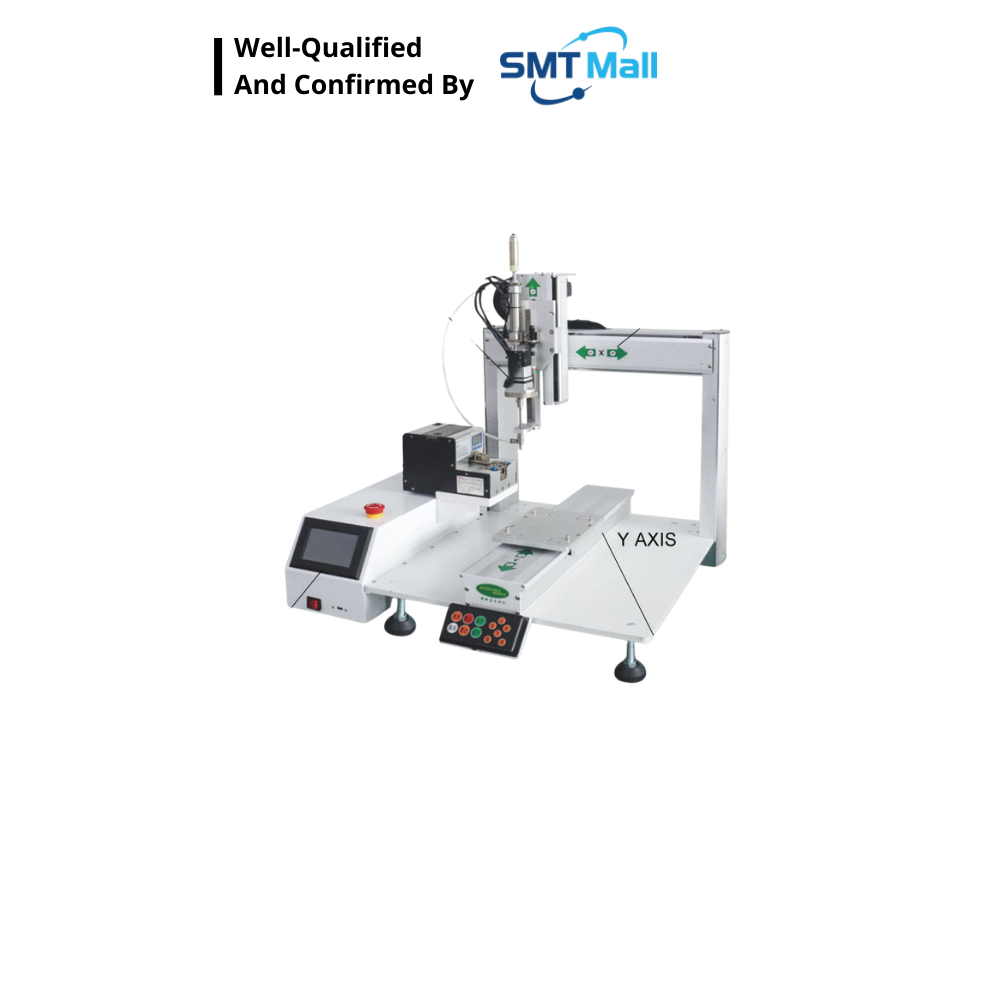

Desktop Screwing Machine
5,600.00 $
The Desktop Screwing Machine is a 3-axis robotic fastening system with dual linear guides, servo-controlled torque and speed, and quick fixture changeover for different products. It delivers precise, repeatable screw fastening for electronics assembly. Part of our Automatic Screwdriver Machine range in Assembling Solutions.
Product overview Desktop Screwing Machine
In today’s electronics manufacturing industry, precision and speed in screw fastening are critical for maintaining product quality and production efficiency.
The JIT Desktop Screwing Machine delivers an optimal solution with its 3-axis robotic design, dual linear guide system, intelligent detection features, and servo-driven torque control.
Compact yet powerful, this system is engineered for high-speed, high-accuracy assembly of consumer electronics, providing outstanding productivity, consistent torque precision, and long-term reliability
Key Features and Technologies
- Easy Fixture and Accessory Replacement: Flexible configuration enables quick changeovers for different product types without modifying the machine.
- Durable Dual-Guide Structure: High wear resistance ensures smooth motion, stable performance, and extended service life.
- Servo Motor Control: Precisely adjustable torque and speed enhance fastening consistency and prolong overall equipment lifespan.
- Intelligent Error Detection: Automatically detects missing screws, cross-threading, and slippage to prevent assembly defects.
- Wide Compatibility: Supports a broad range of screw sizes and applications across various industries.
- Compact Design: Streamlined body allows seamless integration into production lines; supports forward and reverse screw tightening.
- Drag & Teach Programming Mode: Simplifies setup and allows fast, intuitive programming for new product models.
Technical specifications
| Item | Specification |
| Working Range | 180 × 400 × 90 (X × Y × Z) |
| Motion Method | Stepper motor with encoder feedback, no missing steps |
| Linear Guide | Wecn |
| Positioning Accuracy | ±0.02 mm |
| Control System | Touch screen + communication control card |
| Screw Feeding Method | Vacuum suction + magnetic assistance |
| Integrated Screwdriver | Servo screwdriver |
| Screw Tightening Speed | 1.5–2 s/screw (depending on screw type & product) |
| Memory Capacity | 100 programs |
| Communication Interface | USB |
| Operating Voltage | AC 220V |
| Air Pressure Requirement | 0.5–0.6 MPa |
| Power Consumption | 900W |
| Machine Dimensions | 750 × 760 × 770 (L × W × H) |
| Machine Weight | 100 kg |
Applications
The Desktop Screwing Machine offers high versatility and adaptability across a wide range of consumer electronics and precision assembly applications, including:
- Electronic Devices: Smartphones, LED lighting modules, desktop computers, GPS units, audio systems, and cameras.
- Portable Products: Laptops, tablets, e-learning devices, and various household electronics.
- Precision Components: Watches, keyboards, toys, and other compact mechanical assemblies requiring accurate torque control.
