A PCB router machine separates multi-board panels into individual PCBAs by cutting along programmed routing paths with a high-speed spindle. Router depaneling keeps mechanical stress low near components and connectors, which makes it the preferred method for densely populated boards in consumer electronics, telecom, automotive and LED lighting production.
Choose the right PCB depaneling machine
Inline PCB router (JA-R-600A, JA-R-650A): connects directly to the SMT line for automated, high-volume depaneling.
Dual-station router (JA-R-550D): left and right stations run at the same time to raise throughput.
Dual-table router (JA-R-500D): one table loads while the other cuts, for near-zero idle time.
Offline and module routers (JA-R-350M, JA-R-400M, JA-R-450M): compact units for small batches and mixed-model production.
Router vs. other depaneling methods
Compared with V-cut separators, a router handles tab-routed panels and irregular board outlines. Compared with laser depaneling, it costs less and suits thicker boards, while laser is better for very fine contours and flex circuits. See also our laser depaneling machines.
What to check before you buy
Panel size, spindle speed, positioning accuracy, dust extraction, vision alignment, and whether you need inline or offline operation. Contact our engineers for a recommendation and a quotation.

Showing all 9 results

Automatic Depanelling Machine

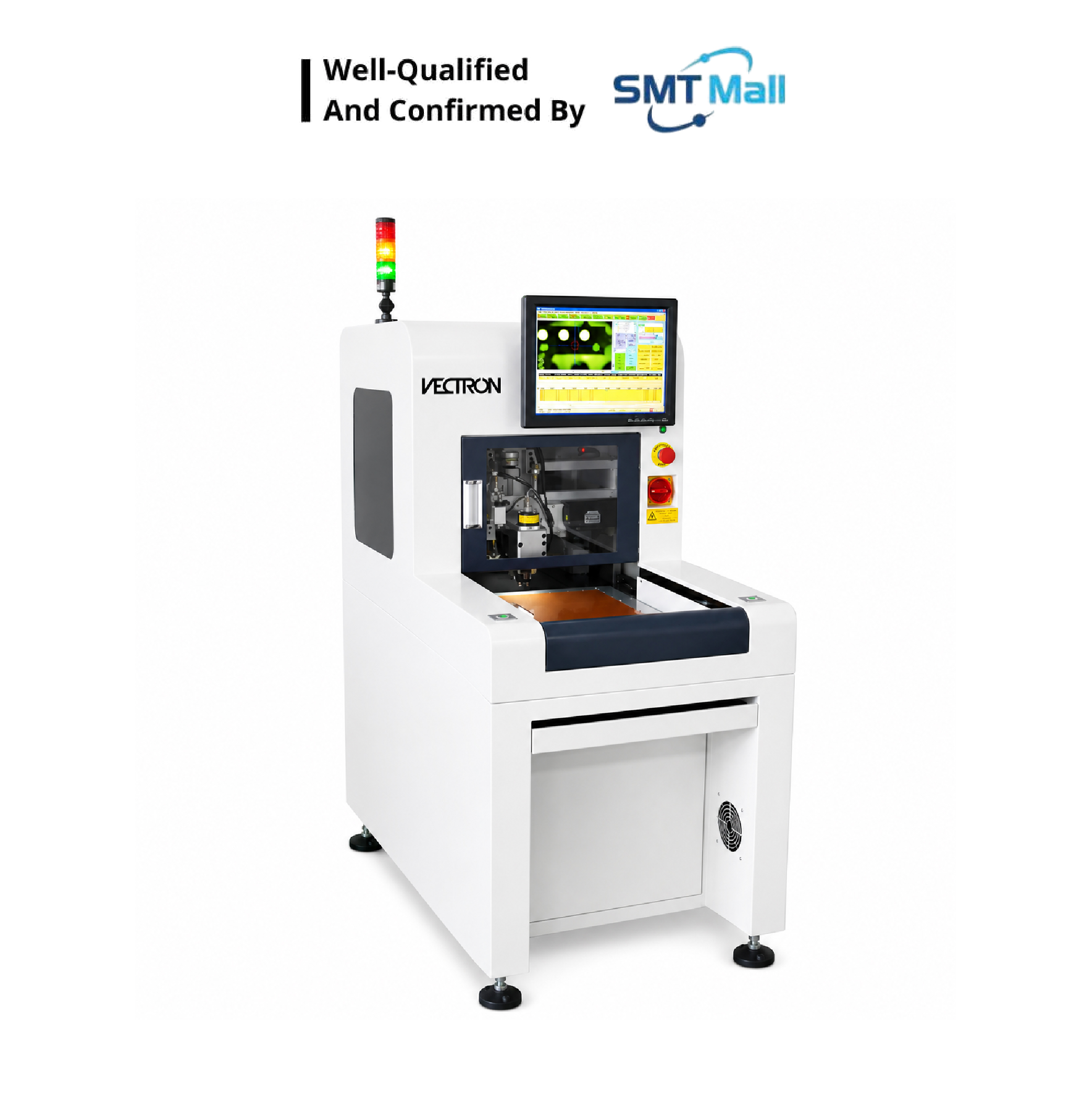

Dual-Station PCB Router Machine JA-R-550D

$21,000.00
View Details
Automatic Depanelling Machine

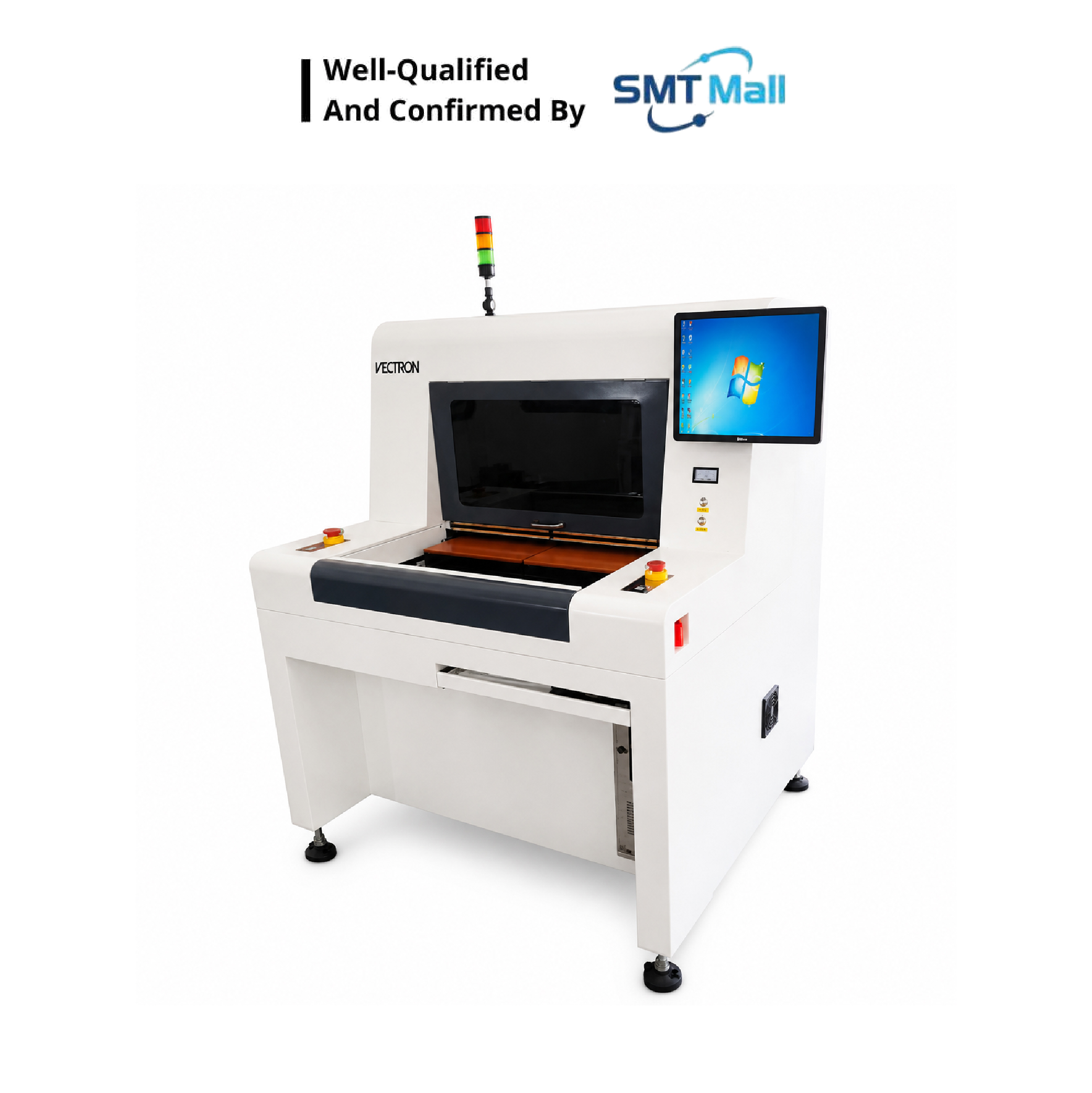

Dual-Station PCB Router Machine JA-R-550D

$25,000.00
View Details
Automatic Depanelling Machine

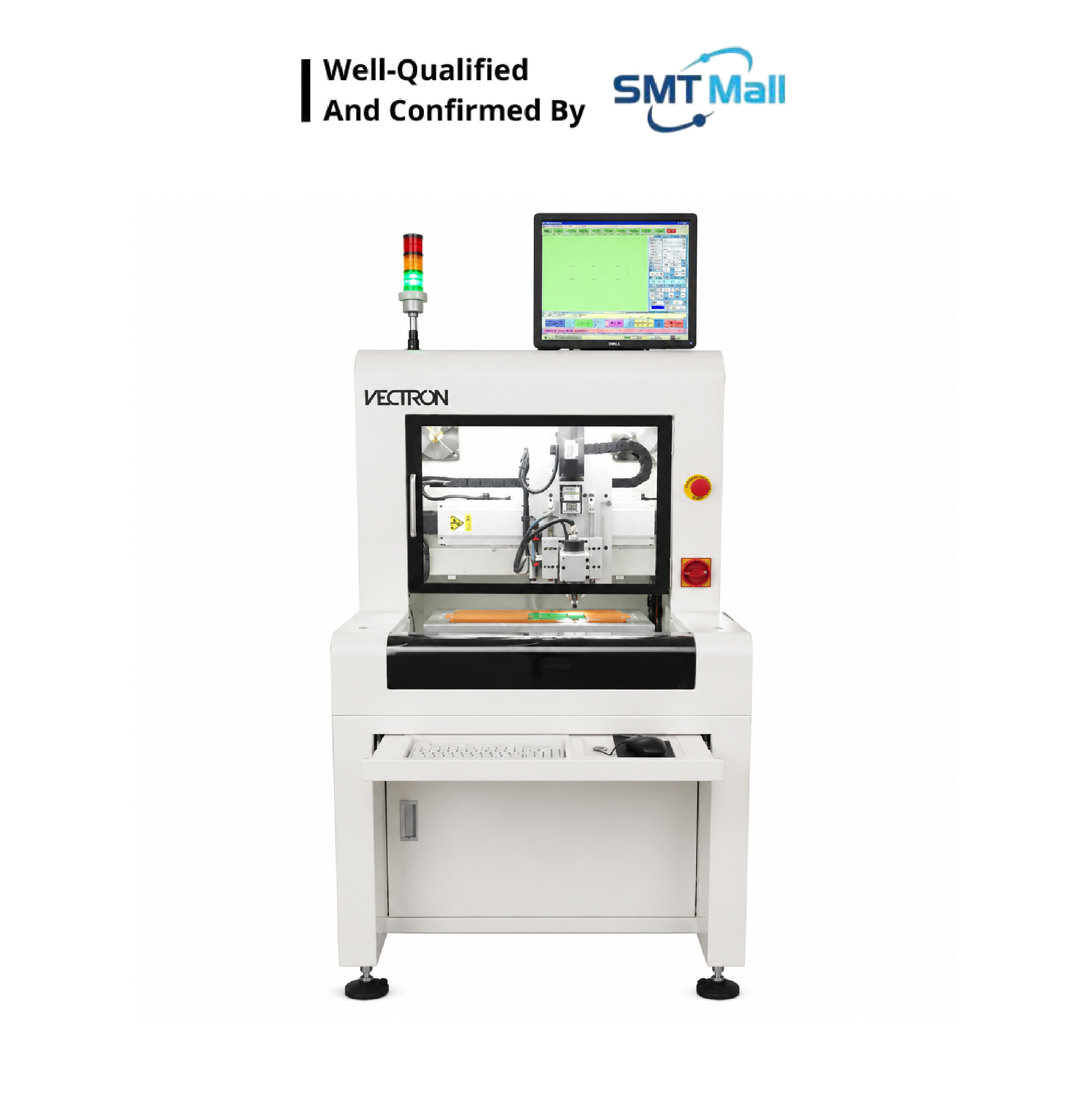

Dual-Table PCB Router Machine JA-R-500D

View Details
Automatic Depanelling Machine

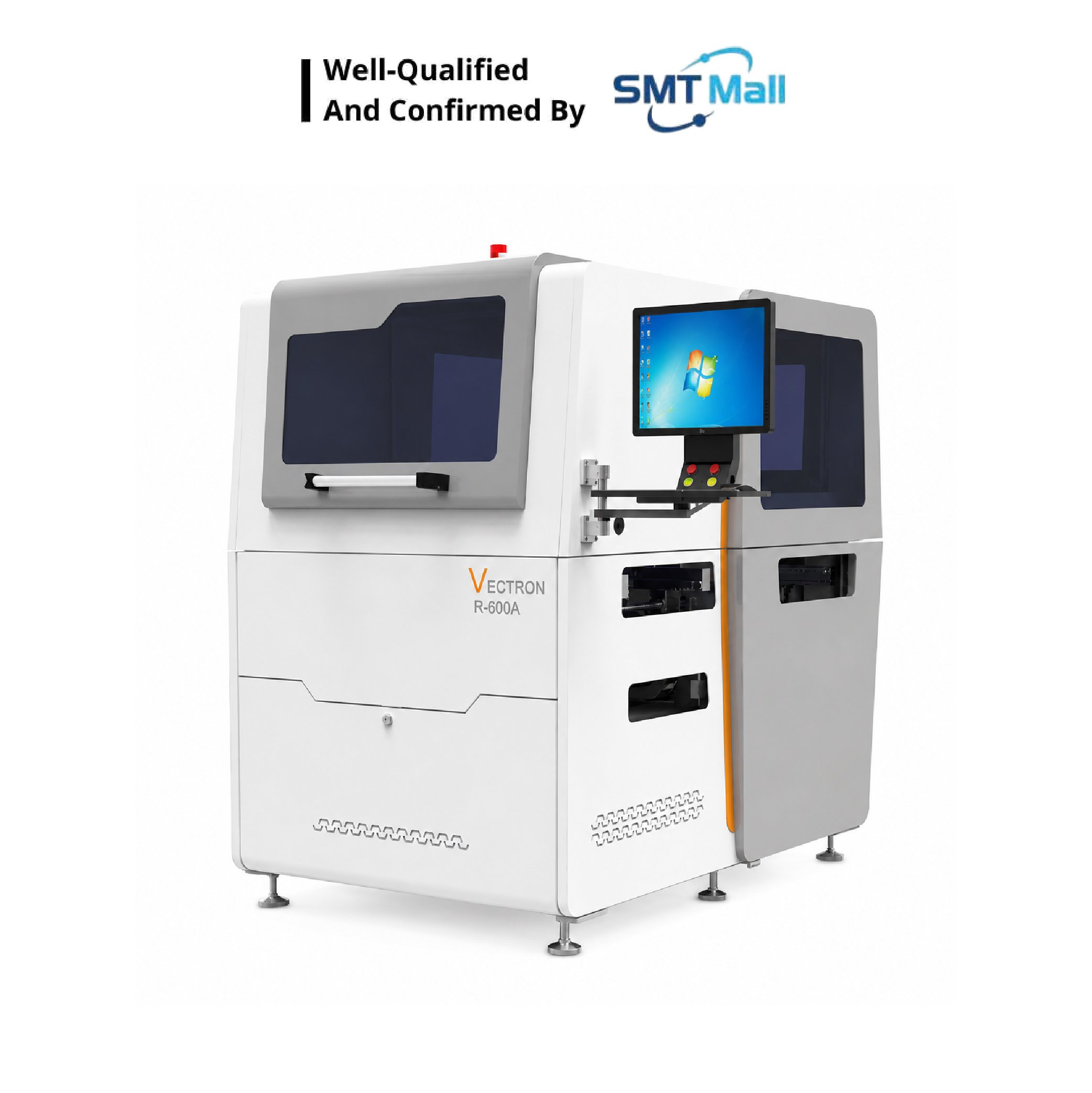

Inline PCB Router Machine JA-R-600A

View Details
Automatic Depanelling Machine

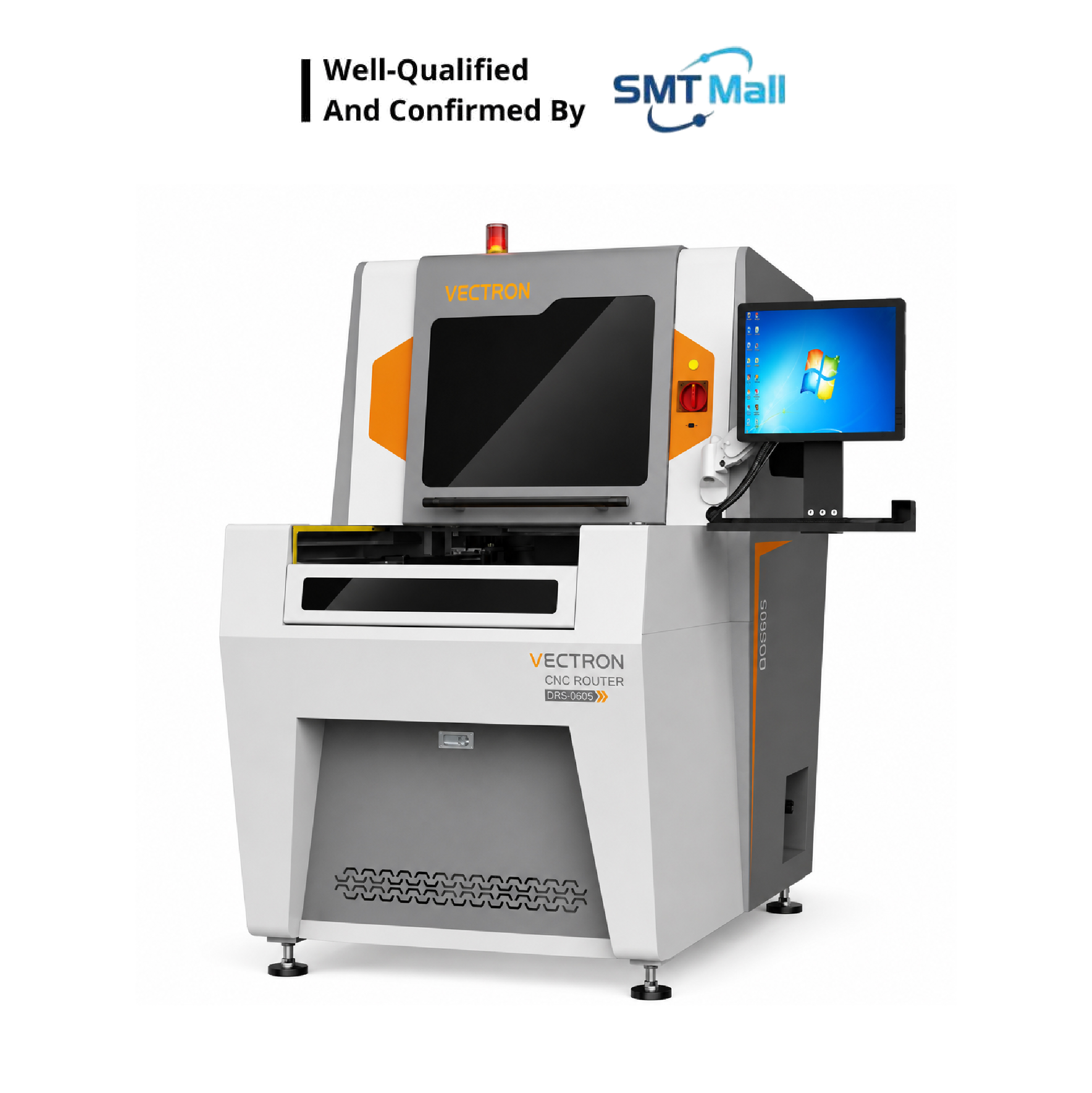

Inline PCB Router Machine JA-R-650A

$63,000.00
View Details
Automatic Depanelling Machine

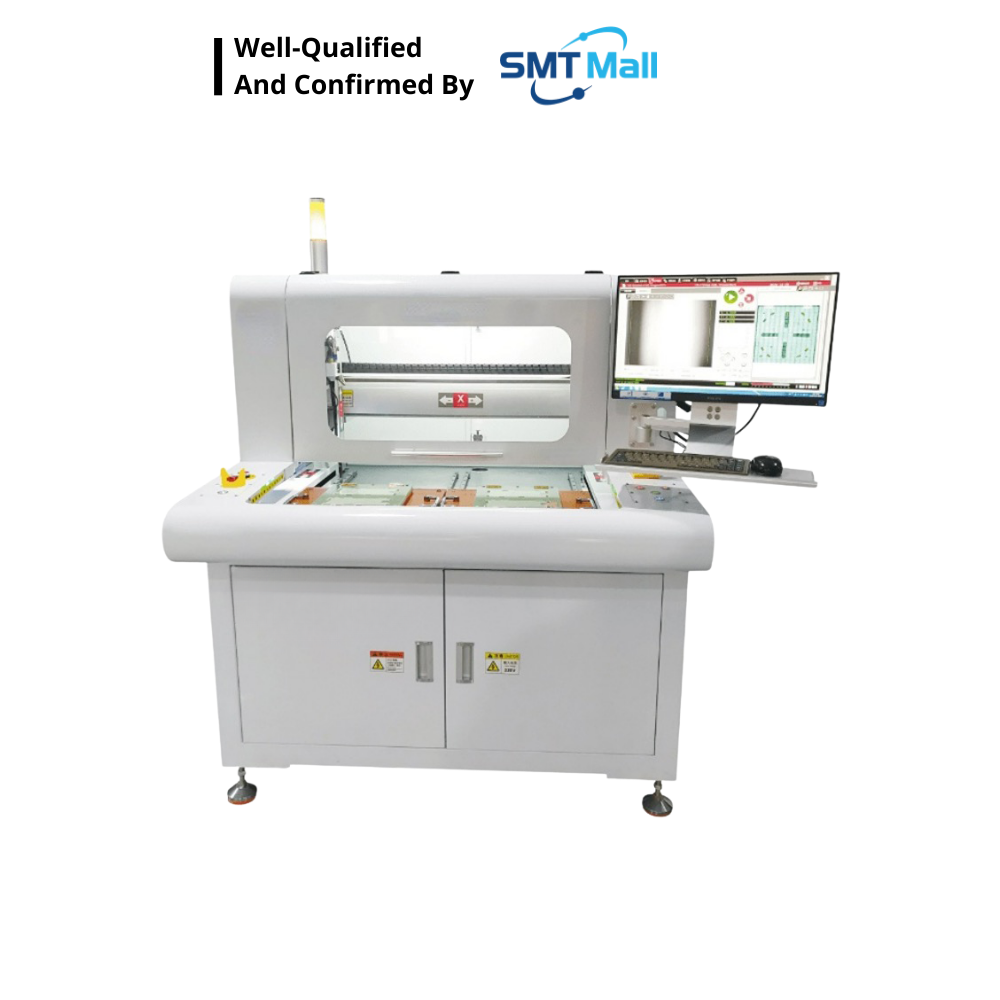

Module PCB Router JA-R-350M Series

$175,000.00
View Details
Automatic Depanelling Machine

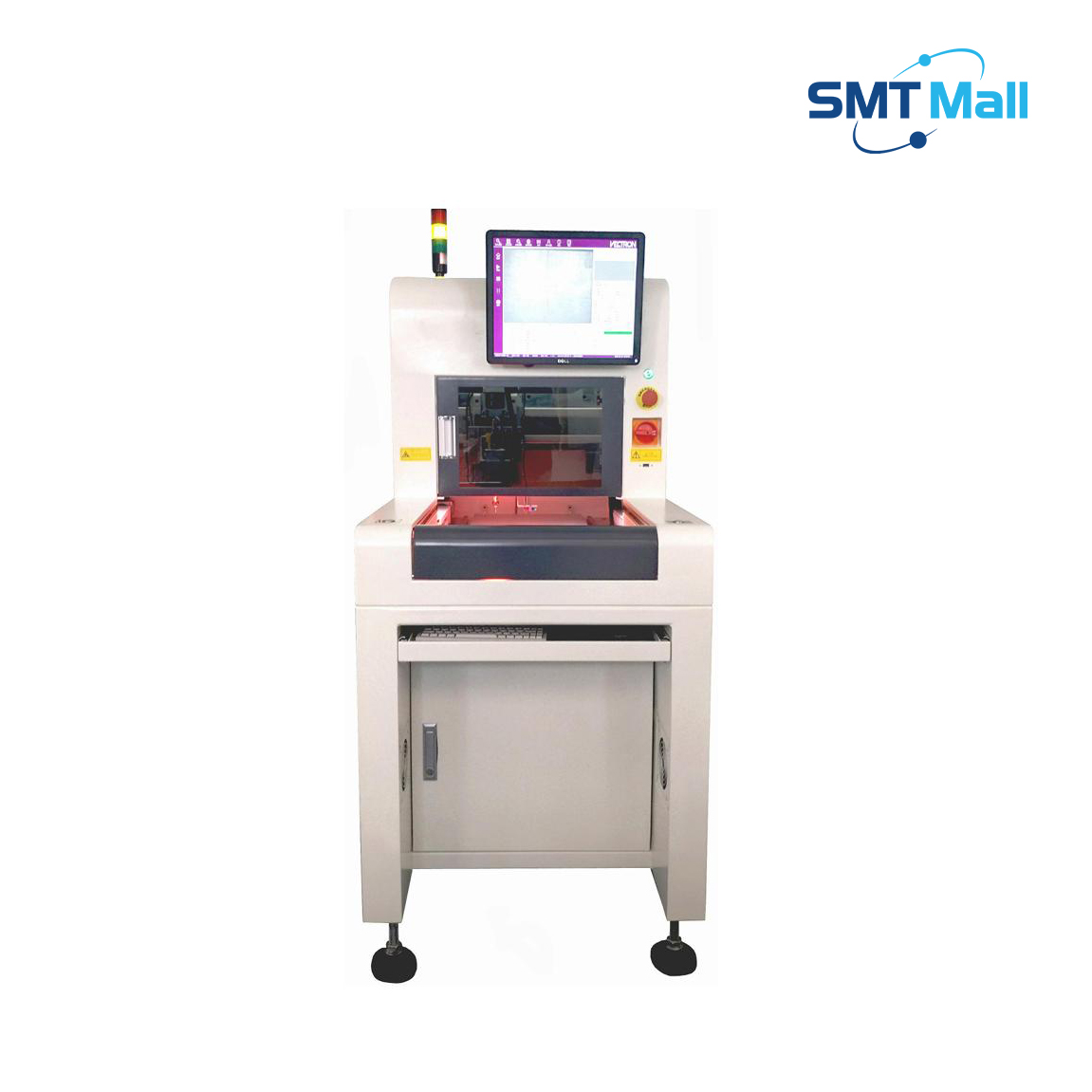

Module PCB Router JA-R-400M Series

$18,000.00
View Details
Automatic Depanelling Machine

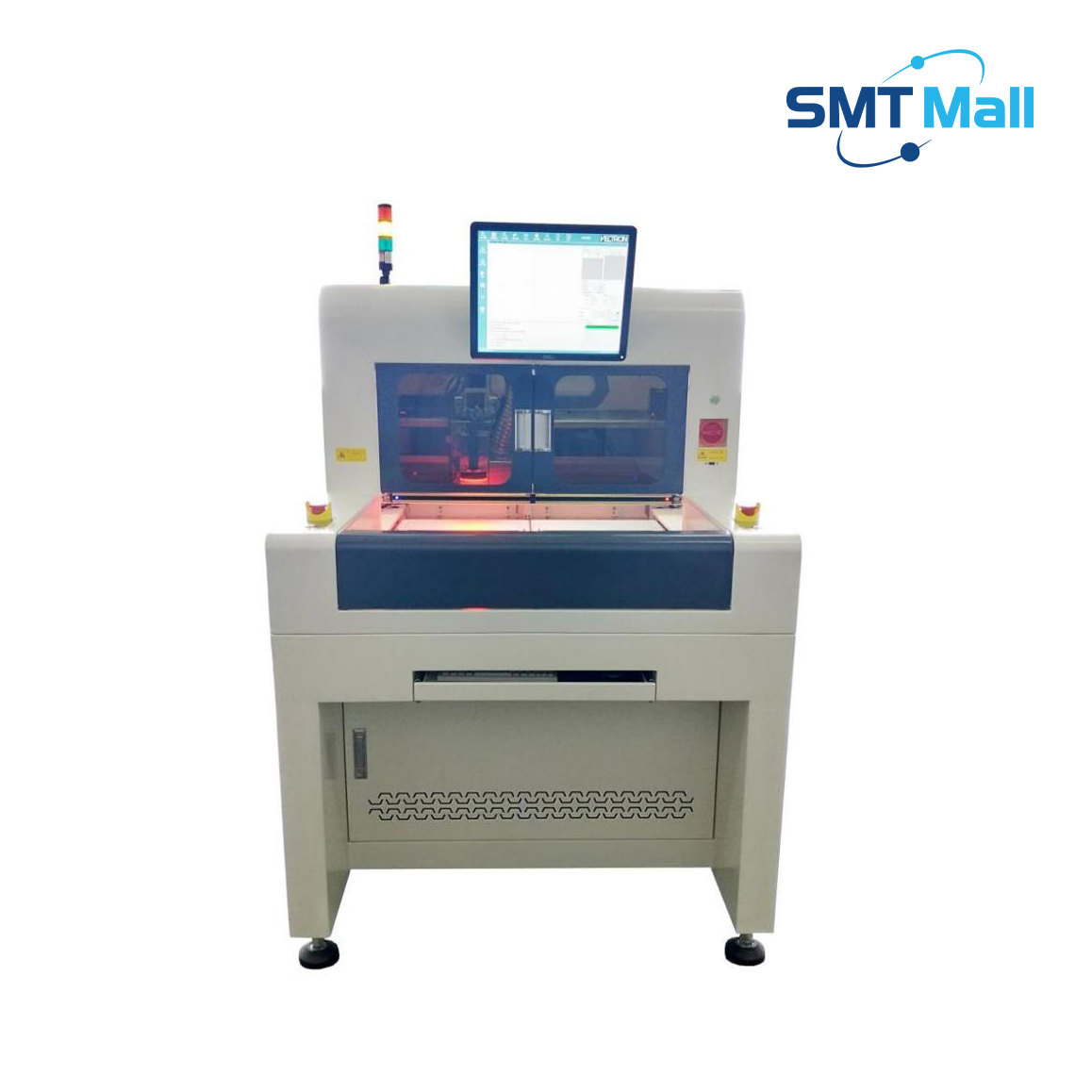

Offline Single-Spindle PCBA Router JA-R-350M

$15,400.00
View Details
Automatic Depanelling Machine

PCB Router Machine JA-R-450M

$16,800.00
View Details

PCB router machine FAQ

What is the difference between inline and offline PCB routers?

An inline PCB router connects directly to the SMT line and depanels boards automatically as they come off the line, which suits high-volume production. An offline router is loaded by an operator and is better for smaller batches, many different products or limited floor space.

Router, laser or V-cut: which depaneling method should I use?

V-cut separation is the cheapest option but only works on straight V-scored panels and puts more stress on the board. A router handles tab-routed panels and irregular outlines with low stress. Laser depaneling is stress-free and dust-free and suits thin, flexible or very dense boards, at a higher equipment cost. See our laser depaneling machines.

How do I control dust when routing PCBs?

Router depaneling produces fine dust, so machines use a vacuum dust extraction system around the spindle. Choose a router with an effective extraction unit and keep filters maintained, especially for boards with sensitive components or cleanliness requirements.

Which router suits my output?

Dual-station and dual-table routers increase throughput by loading one side while the other cuts. Inline routers suit continuous high-volume lines. Tell us your panel size, boards per panel and cycle time target, and we will recommend a model.
