Wave Soldering Machine
5 products
A wave soldering machine solders through-hole components by passing the PCB over a wave of molten solder after fluxing and preheating. It is the fastest way to solder boards with many through-hole joints, such as power supplies, controllers and LED drivers.
Machines in this category
Manual Mini Wave Soldering Machine JA-N200 – compact unit for prototypes, repair and small batches.
Semi-Auto Wave Soldering Machine – for low-volume production with manual loading.

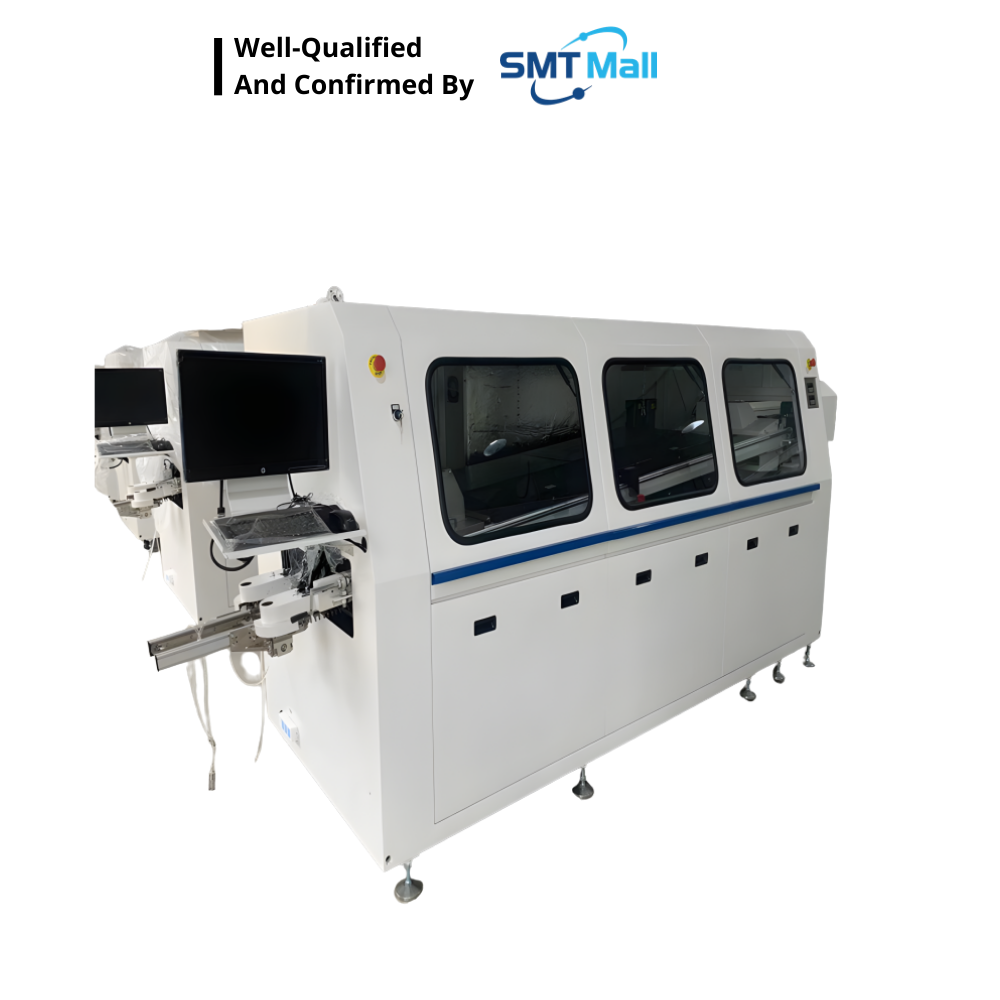

Inline Lead-Free Wave Soldering Machine JA-N300 – conveyorised machine that connects to an assembly line.
Ti-Alloy Dual Wave Soldering Machine JA-N350 – dual wave with a titanium-alloy solder pot for lead-free alloys and mixed-technology boards.
Selective Soldering Machine JA-SE4030 – solders only programmed joints with a mini-wave nozzle.
Wave or selective soldering?
Choose wave soldering when most joints are through-hole and output is high. Choose selective soldering for mixed SMT/THT boards where SMD parts on the bottom side must not pass over the wave, or where you want to avoid pallets and masking. For bench-top work, see our desktop soldering machines.
What to check
Board width, pot capacity and alloy, fluxer type (spray or foam), preheat length and nitrogen option.
Related: solder bar, wave soldering flux and Chemask peelable mask in Chemtronics. Send a quote request with your board size and volume.
Wave soldering FAQ
Should I choose wave soldering or selective soldering?
Wave soldering is faster and more economical when a board has many through-hole joints and SMD parts on the bottom side can be glued or protected. Selective soldering solders only programmed joints, so it suits mixed-technology boards without pallets or masking, at a lower throughput.
Why use a dual wave?
The first, turbulent wave pushes solder into tight spaces and around SMD parts, and the second, smooth laminar wave removes excess solder and reduces bridging. Dual wave machines are standard for mixed SMT and through-hole boards.
Why does lead-free wave soldering need a titanium or special solder pot?
Lead-free alloys with a high tin content dissolve ordinary stainless steel over time. Pots made from titanium alloy or with protective coatings resist this erosion and last longer.
How can I protect parts that must not be soldered?
Use a selective soldering machine, wave soldering pallets, or a temporary peelable solder mask such as Chemtronics Chemask or Techspray WonderMASK.
