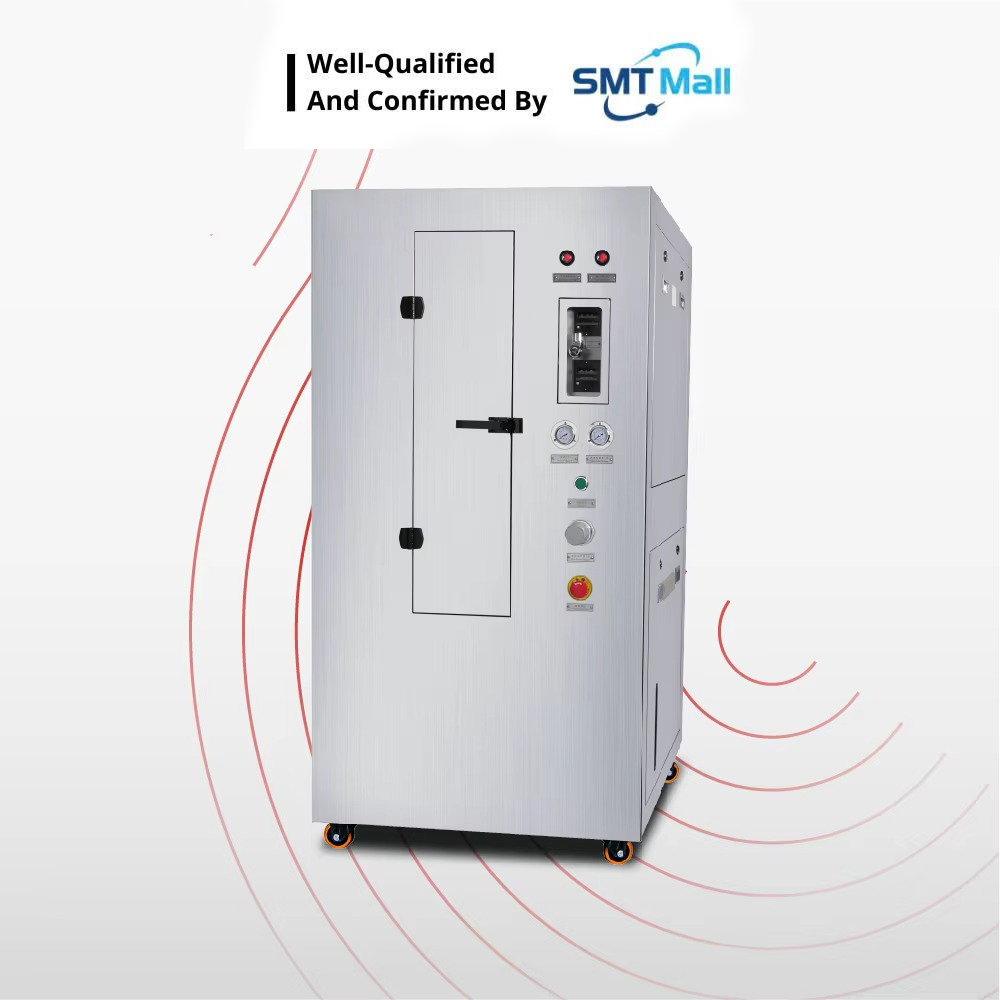

Product Overview
The SMT Automatic Stencil Cleaning Machine is a fully automatic industrial cleaning system designed for precision cleaning of stencils, screens, and PCBA-related components in SMT and electronics manufacturing processes.
Utilizing advanced aqueous and ultrasonic cleaning technology, the system ensures effective removal of contaminants such as solder paste, SMD adhesives, flux residues, oil, grease, and dust. This helps maintain high product quality, improve process consistency, and extend stencil service life.
Engineered for reliability and efficiency, the machine features a multi-stage cleaning process with controlled temperature drying, making it an ideal solution for high-volume production environments.
Technical Specifications
| Item | Description |
| Machine Type | Industrial Ultrasonic Cleaner |
| Cleaning Process | Cold Water Cleaning |
| Cleaning Type | Aqueous / Ultrasonic Cleaning |
| Material Compatibility | Metal / Coil |
| Application | Burnishing / Precision Cleaning |
| Power Source | Electric |
| Dimensions (L×W×H) | 800 × 950 × 1650 mm |
| Weight | 1600 kg |
| Cleaning Basket Size | 610 × 560 × 100 mm (2 layers) |
| Spray Tank Capacity | 17 L |
| Concentrate Capacity | 32 L |
| Dilution Tank Capacity | 60 L |
| Cleaning Time | 5 – 20 minutes |
| Rinse Time | 1 – 2 minutes per cycle |
| Hot Air Drying Time | 10 – 30 minutes |
| Drying Temperature | Room temperature – 99°C |
| DI Water Supply | 30 – 65 L/min |
| Warranty | 1 Year |
Key Highlights
- Fully automatic aqueous cleaning system for SMT applications
- Integrated ultrasonic cleaning for enhanced precision and efficiency
- Multi-stage process: Cleaning → Rinsing → Hot Air Drying
- Adjustable cleaning and drying parameters for process flexibility
- High-efficiency contaminant removal (solder paste, flux, adhesives)

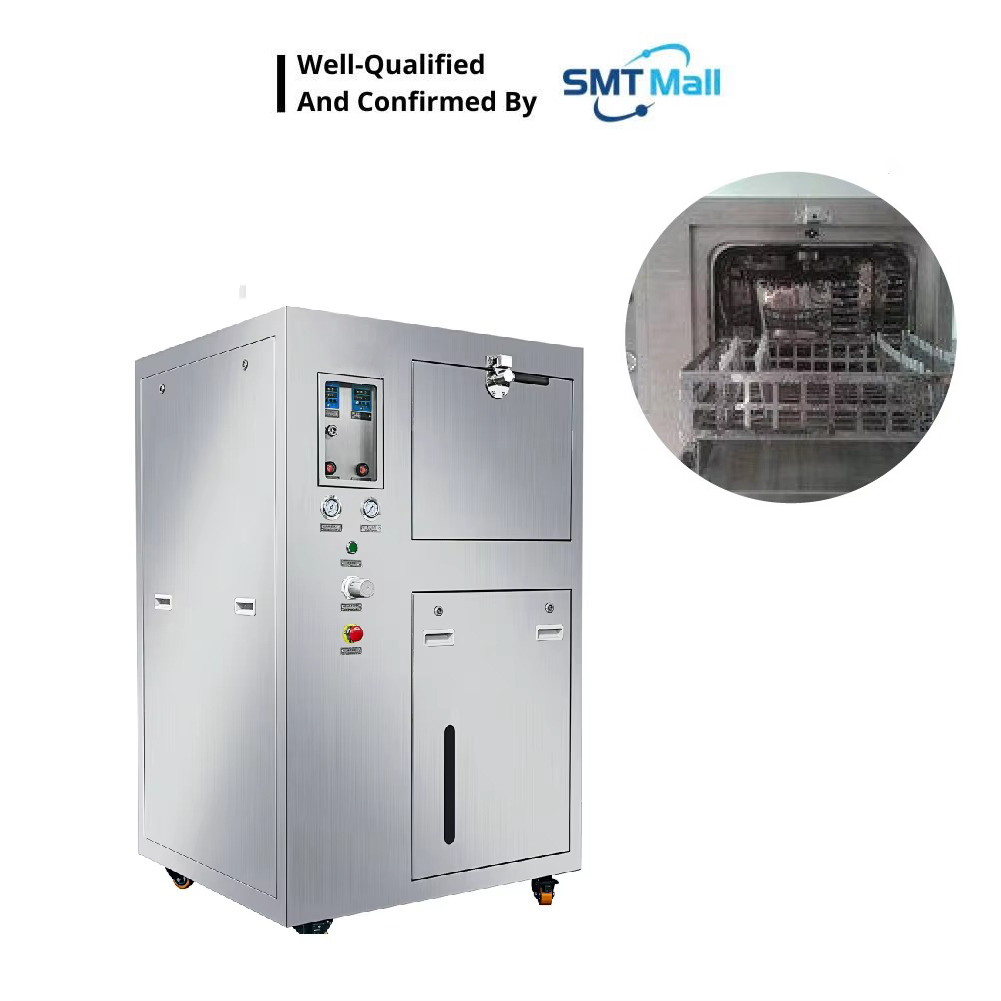

- Dual-layer basket design for increased throughput
- Stable and consistent cleaning performance for high-volume production
Applications
This system is ideal for precision cleaning in SMT and electronics manufacturing, including:
- SMT stencil and screen cleaning
- PCBA cleaning and maintenance
- Removal of solder paste, SMD adhesives, and flux residues
- Cleaning of metal components and precision parts
The machine supports a wide range of aqueous cleaning agents and is compatible with standard industry materials, making it suitable for diverse production environments.
Why clean SMT stencils automatically
Dried solder paste in stencil apertures is one of the main causes of insufficient solder, bridging and misalignment in SMT printing. Manual wiping cannot reach inside fine-pitch apertures consistently. An automatic stencil cleaning machine cleans every aperture the same way, every time — improving first-pass yield, reducing rework and extending stencil life.
Choosing the cleaning chemistry
Use a cleaning agent matched to your solder paste and flux. Water-based cleaners such as Techspray Eco-dFluxer SMT200 or solvents such as Nano Cleaning Solvent JC-A02 are available from our cleaning materials range. Ask us for a recommendation and a free sample.
Related equipment
For small parts and nozzles, see the ultrasonic cleaning machine JA-0203. For pallets, jigs and machine maintenance without liquids, see our dry ice cleaning machines. Request a quote with your stencil size and daily volume.
