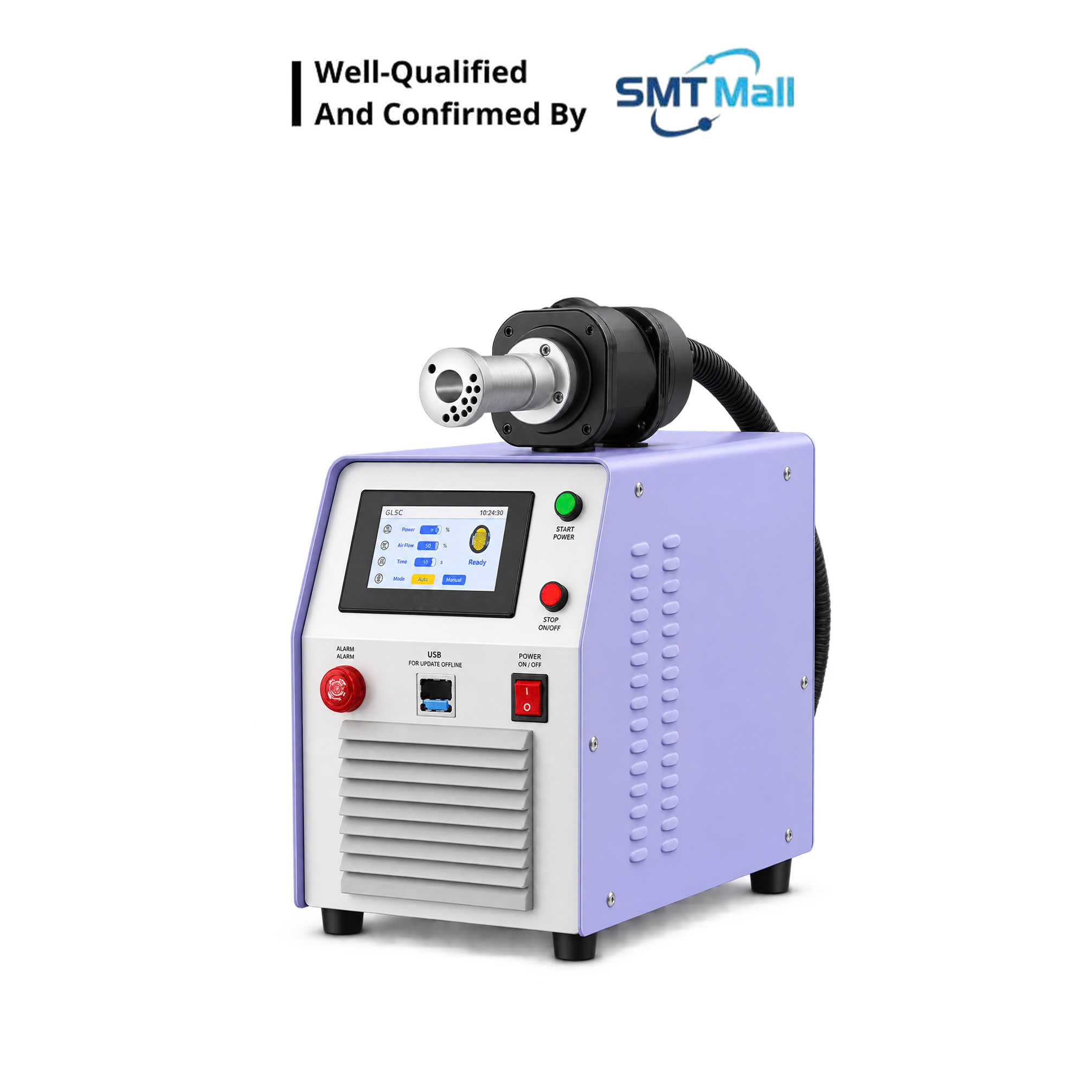

Handheld Plasma Surface Treatment Machine JA-PL25
5,000.00 $
Currency:
The Handheld Plasma Surface Treatment Machine JA-PL25 uses a 500 W, 40 kHz plasma discharge to clean and activate surfaces with compressed air or nitrogen. Overload and short-circuit protection make it safe for daily use. Part of our Handheld Plasma Machine range in Surface Treatment Solutions.
Technical specifications
| Item | Specification |
|---|---|
| Equipment Size | 576 mm (L) × 232 mm (W) × 373 mm (H) |
| Weight | 20 kg |
| Input Power Supply | AC 220V, 50/60Hz |
| Rated Power | 500 W |
| High Voltage Frequency | 40 kHz |
| Working Gas | Anhydrous, oil-free compressed air (optional nitrogen or other gases) |
| Protection Functions | Overload protection, short-circuit protection, open-circuit protection, temperature protection |
| Control Options | Local control & remote control available |
| Spray Gun Types | Rotary spray gun / Direct injection spray gun |
| Rotary Gun Options | Treatment width & diameter: Ø80 mm, Ø60 mm, Ø40 mm, Ø20 mm (optional) |
| Direct Injection Options | Treatment width & diameter: 2 mm, 3 mm, 5 mm |
| Cable Length | 3 m (customizable) |
| Warranty & Service | Standard manufacturer warranty; extended service available upon request |
| Support | Detailed instruction manual and engineering support provided |
Applications
The AP-100 Plasma Cleaner is widely used for surface activation, cleaning, coating preparation, and bonding enhancement across multiple industries.
Industrial Applications Include:
(a) Electronics & Semiconductor
- PCB surface cleaning and activation before coating or adhesive application.
- LCD display coating and screen printing preparation.
- Removal of oils, dust, and glue residues from casings and connectors.
(b) Automotive
- Pre-bonding treatment for headlamp housings, brake pads, and sealing strips.
- Surface activation before painting or adhesive sealing.
(c) Medical Devices
- Pre-treatment of needles, plastic catheters, and tubing before bonding or coating.
(d) Machinery & Metal Processing
- Fine cleaning of metal parts before plating or sealing.
- Non-destructive surface activation for precision components.
(e) Packaging & Printing
Plasma pre-treatment on cartons, films, and packaging materials to improve adhesion and ink bonding.
| Weight | 35 kg |
|---|---|
| Dimensions | 60 × 33 × 67 cm |
