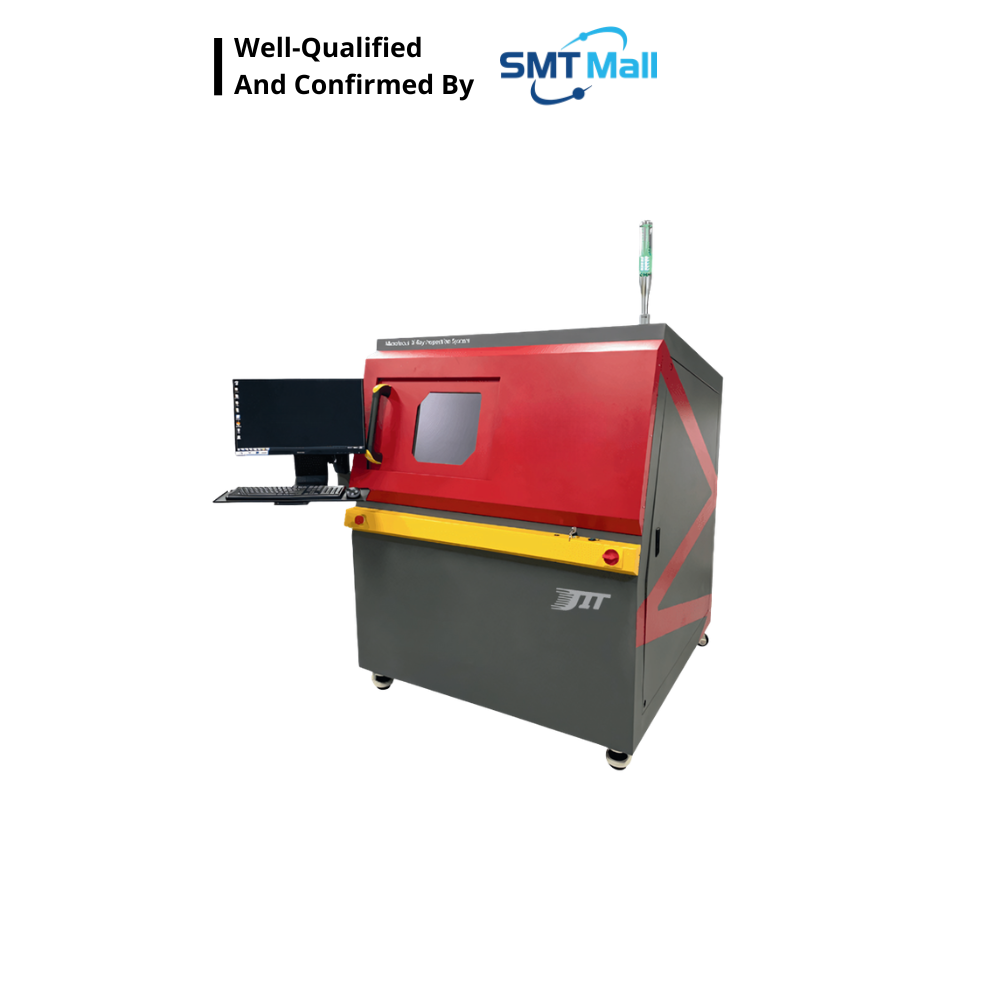

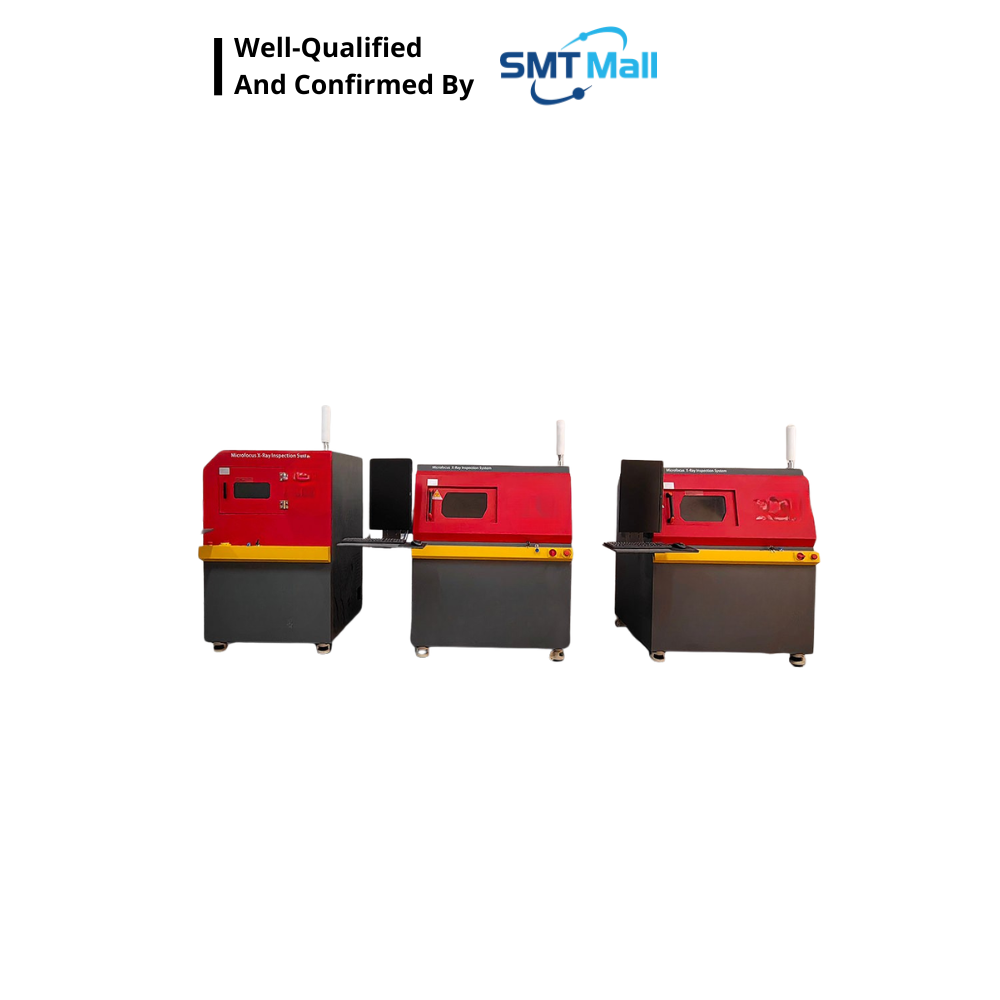

Automated X-Ray Inspection Machine X6800
55,000.00 $
Product overview
The Closed-Type Micro-Focus X-ray Inspection System (40kV–90kV) is designed for high-precision inspection of electronic components, PCBs, and solder joints. Equipped with a Hamamatsu micro-focus X-ray tube and Rayence HD flat panel detector, it delivers sharp, detailed imaging for accurate defect analysis and quality assurance. The system supports automated inspection and measurement, making it ideal for modern SMT and electronic assembly lines.
Key features
– High-Resolution Micro-Focus X-Ray Tube: Equipped with a 40–90kV closed-type Hamamatsu X-ray tube with a 5µm focal spot for crystal-clear imaging of micro defects.
– Advanced HD Imaging System: Features a Rayence digital flat panel detector and 60° tilting view for oblique inspection while maintaining image center.
– Large Inspection Area & Load CapacityOffers a 530mm × 530mm working area supporting up to 10kg, suitable for various PCB and component sizes.
– Smart Inspection Software: Automatic navigation, defect identification, and customizable inspection procedures for efficient batch testing.
– Comprehensive Measurement Tools: Supports BGA void analysis, radius, area, and perimeter measurement with repeat programming for consistent results.
– User-Friendly Operation & Low Maintenance: 5-axis linkage control, optional 360° rotary jig, intuitive software interface, and minimal upkeep for long-term reliability.
Technical specifications
| Specification | Details |
| X-ray Source | |
| Type | Closed, microfocus |
| Max Tube Voltage | 90 kV |
| Max Tube Current | 200 μA |
| Focal Spot Size | 5 μm |
| Function | Auto preheat |
| Flat Panel Detector | |
| Brand | IRAY |
| Effective Area | 130 mm × 130 mm |
| Pixel Size | 85 μm |
| Resolution | 1536 × 1536 |
| Frame Rate | 20 fps |
| Tiltable Angle | 60° |
| Table | |
| Size | 530 mm × 530 mm |
| Detectable Area | 500 mm × 500 mm |
| Max Load | 10 kg |
| Equipment | |
| Magnification | Geometry 200X, System 1500X |
| Inspection Speed | Max 3.0 s/point |
| Dimensions | 1360 mm (L) × 1365 mm (W) × 1630 mm (H) |
| Weight | 1350 kg |
| Power Supply | AC110–220V 50/60Hz |
| Max Power | 1500 W |
| Industrial PC | I5 CPU, 4G RAM, 240GB SSD |
| Displayer | 24” HDMI LCD |
| Safety | |
| Radiation Leakage | No leakage, international standard: ≤1 μSv/h |
| Lead Glass Window | Transparent lead glass window shields radiation to observe the inner status |
| Window/Back Door Safety Interlock | Window or back door open: X-ray tube powers off; cannot turn on X-ray with them open |
| Electromagnetic Safety Switch | Locks once X-ray is on; observation window cannot be opened |
| Emergency Stop | Located next to operation position; press to power off |
| Tube Protection | User cannot leave software without closing the X-ray tube |
4. Applications
- SMT and PCB assembly inspection
- BGA, QFN, and IC package analysis
- Void detection in solder joints
- Automotive electronics and semiconductor quality control
- Research and failure analysis in electronics manufacturing
