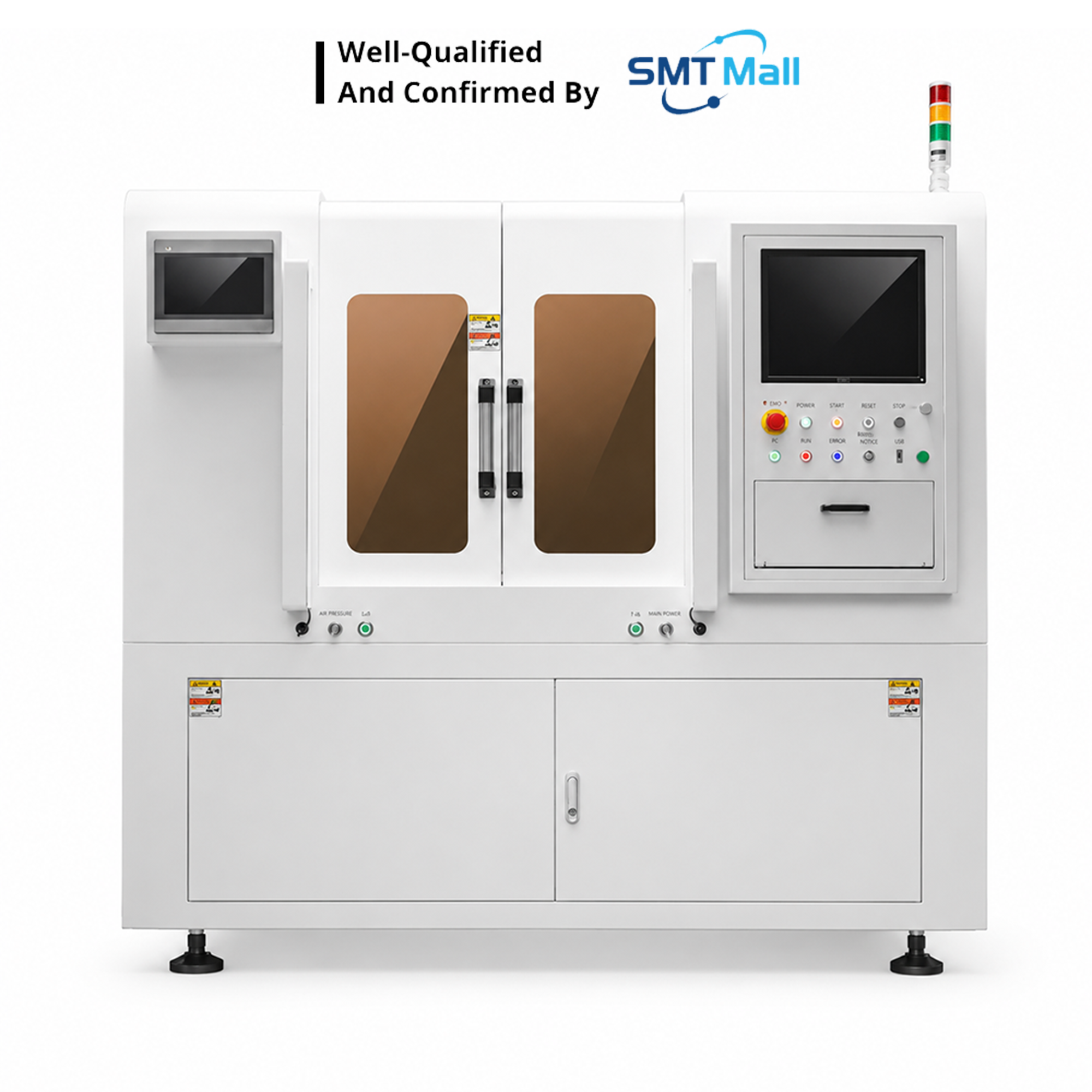

PCB Laser Precision Cutting Machine
98,000.00 $
The PCB Laser Precision Cutting Machine provides non-contact, stress-free depaneling for high-density assemblies. Autofocus and CCD positioning keep cutting accurate, and intuitive software makes editing cut paths easy. Part of our Laser Depanelling Machine range in Depaneling Solutions.
Product overview PCB Laser Cutting Machine
The Laser PCB Depaneling Machine is an advanced, high-precision system designed to deliver non-contact, stress-free PCB cutting for today’s high-density electronic assemblies. Using a high-speed laser system with automatic focusing and CCD visual positioning, it ensures micron-level accuracy without causing mechanical stress or damage to components.
Engineered for full automation and MES integration, the machine supports barcode reading, real-time data upload, and automatic product recognition. Its dynamic zoom, multi-color vision illumination, and user-friendly cutting software make it suitable for a wide range of PCB types and materials. Built with strict anti-static protection and safety interlock systems, this laser depaneling solution offers exceptional reliability, safety, and process control for modern SMT production lines.
Key Features and Technologies
- Automatic Focusing System: Equipped with an intelligent autofocus function that eliminates manual focusing errors, ensuring consistent cutting accuracy.
- User-Friendly Cutting Software: Intuitive software interface with built-in graphic editing functions such as inward/outward adjustment, size modification, and cutting-point editing for flexible operation.
- Dynamic Zoom Technology: Automatically adjusts focus based on PCB thickness, enabling precise multi-layer cutting and maintaining optimal focal accuracy throughout the process.
- CCD Vision Alignment & Compensation: Features CCD automatic positioning and intelligent expansion/shrinkage compensation to ensure high-precision board separation.
- Adjustable Three-Color Light Source: The tri-color illumination system enhances recognition of PCB optical marks for accurate positioning and alignment.
- Built-in QR Code Recognition for MES Integration: High-resolution CCD camera supports independent QR code reading (1mm×1mm to 6mm×6mm, up to 19 digits), enabling real-time MES data upload and traceability.
- Flexible Conveyor Height and Length: Adjustable conveyor height of 900±50mm and 1000mm track length provide easy integration into SMT production lines.
- Anti-Static and ESD-Safe Design: All components within 30cm comply with SMT anti-static standards to protect sensitive PCB assemblies.
Technical specifications
| Item | Specification |
| Laser Type | Green laser |
| Laser Power | 35W |
| Platform Range | 300 × 300 mm double table |
| Adapt to Product Thickness (mm) | MAX 1.5 mm |
| Maximum Speed of Platform | 1000 mm/s |
| Maximum Cutting Speed (mm/s) | ≥200 mm |
| Positioning Accuracy | ±0.005 mm |
| Repeatability | ±0.005 mm |
| Cutting Accuracy | ±0.025 mm |
| Power | AC220V/50Hz, 3KW |
| Weight | 3200 kg |
| Dimensions | L1600 × W1300 × H1800 mm |
Applications
- SMT and Electronics Manufacturing: Ideal for depaneling assembled PCBAs with precision and minimal stress.
- Consumer Electronics & Automotive Electronics: Suitable for thin, complex, and high-value circuit boards.
- 5G Communication Devices & IoT Modules: Supports fine-pitch PCB cutting with high repeatability.
- Medical Electronics & Industrial Control: Ensures clean, burr-free edges for sensitive and mission-critical applications.
- Smart Factory Integration: Seamlessly connects with MES/ERP systems for real-time monitoring, traceability, and data management.
